Basic Info.
Model NO.
LFP48V150AH
Rechargeable
Rechargeable
Size
Medium
Product Name
LiFePO4 Lithium Battery Pack
Display
LCD Indicator
Nominal Voltage
48/51.2VDC
Nominal Capacity
2.5/5/7.5/10/15/20/30kwh
Mounting
Wall Mounted Powerwall
Cycle Life
More Than 6000 Times
Battery Cell
3.2V 50ah Prismatic Cell
Inverter Matched
Solis, Deye, Goodwe, Growatt, Sofar, Gmde, etc.
Material
LiFePO4
Color
Grey, Black , Red ,Green,White etc
Transport Package
Wooden Box on Pallet
Specification
48V 150AH Lithium Battery
Trademark
Rosenpv or OEM
Origin
China
HS Code
8507600090
Production Capacity
10000units/Days
Packaging & Delivery
Package Size
90.00cm * 65.00cm * 45.00cm
Package Gross Weight
105.000kg
Product Description
Product Description
Technical Specification
Attractive Design

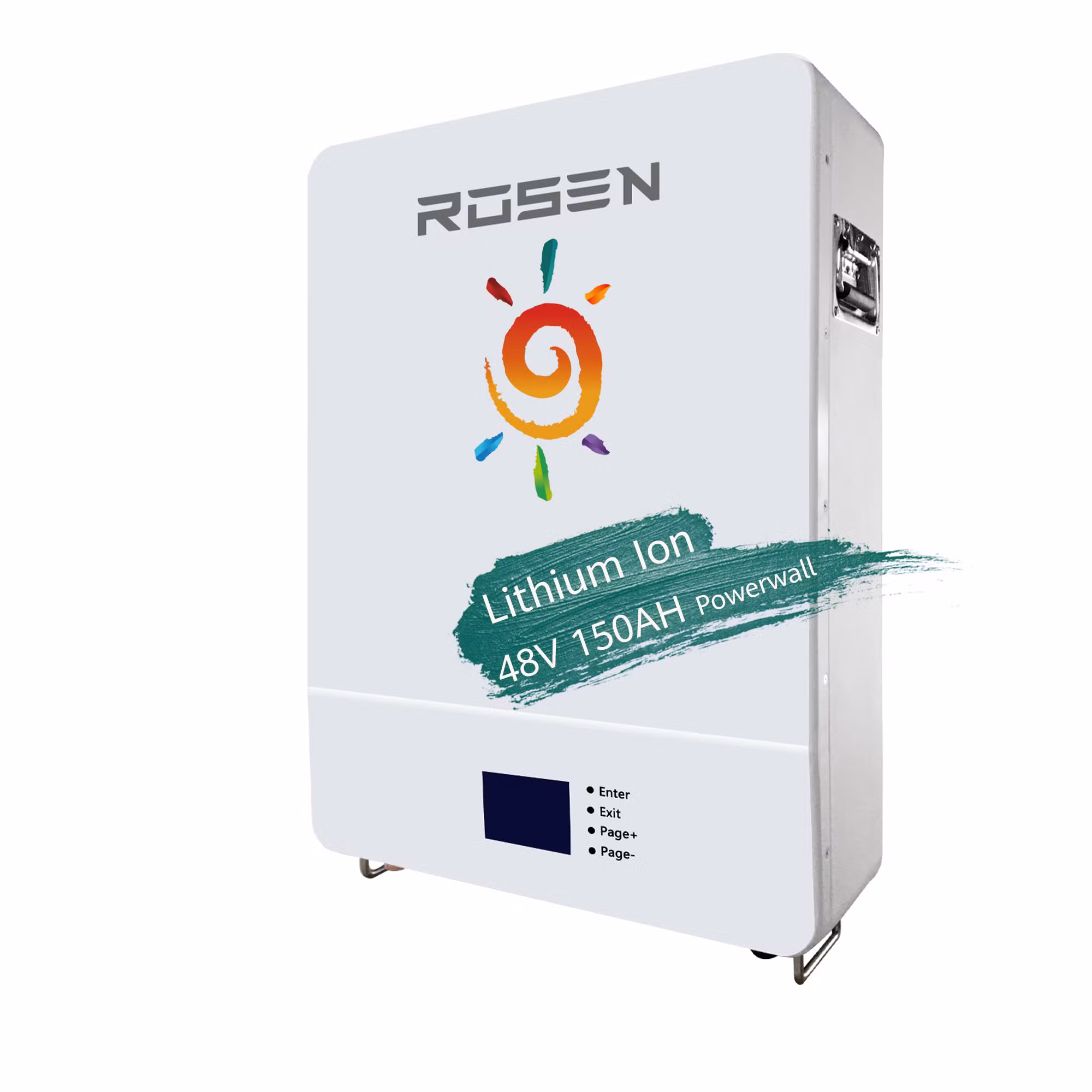

Rosenpv Lithium battery has compact design,
LCD screen, convenient setting buttons,
bluetooth Monitor on your smartphones,and
cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Rosenpv Lithium battery has compact design,
LCD screen, convenient setting buttons,
bluetooth Monitor on your smartphones,and
cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Wide Application
Rosenpv Lithium Ion Powerwall series are
widely used in Solar Systems for residential
and commercial use. With more than 6000
times deep cycle, up to 90% DOD and
phosphate battery Cell, Rosenpv Powerwall
has won global approval!
Rosenpv Powerwall design belongs to
Rosenpv patent. Rosenpv reserve sole and
only right for sales of it's powerwall.
Rosenpv Lithium Ion Powerwall series are
widely used in Solar Systems for residential
and commercial use. With more than 6000
times deep cycle, up to 90% DOD and
phosphate battery Cell, Rosenpv Powerwall
has won global approval!
Rosenpv Powerwall design belongs to
Rosenpv patent. Rosenpv reserve sole and
only right for sales of it's powerwall.
Integrated Function
Rosenpv Powerwall can be installed in
parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
Rosenpv Powerwall can be installed in
parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
| Type | Module | Powerwall | |||
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | LFP48V300AH |
| Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah | 300Ah |
| Nominal Battery Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 | 14.4 |
| Max Discharge Current [A] | 50 | 100 | 150 | 200 | 300 |
| Net Weight | 35 | 68 | 95 | 108 | 144 |
| Dimension [H*W*D, mm] | 442*480*185 | 680*495*185 | 680*495*185 | 680*495*185 | 1020*495*190 |
| Operating Temperature Range | -20 ~ 50 [ºC ] | ||||
| Life Cycles | >6000 | ||||
| Nominal Voltage [V] | 48Vdc | ||||
| Communication | CAN/RS485/DRY CONTACT | ||||
| Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||
| Warranty | 10 Years | ||||
| Alarms | Battery Operation/Out of Battery/System fault | ||||
| Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | ||||
| Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system | ||||
Lithium Battery Prodution
Packing & Delivery
Projects

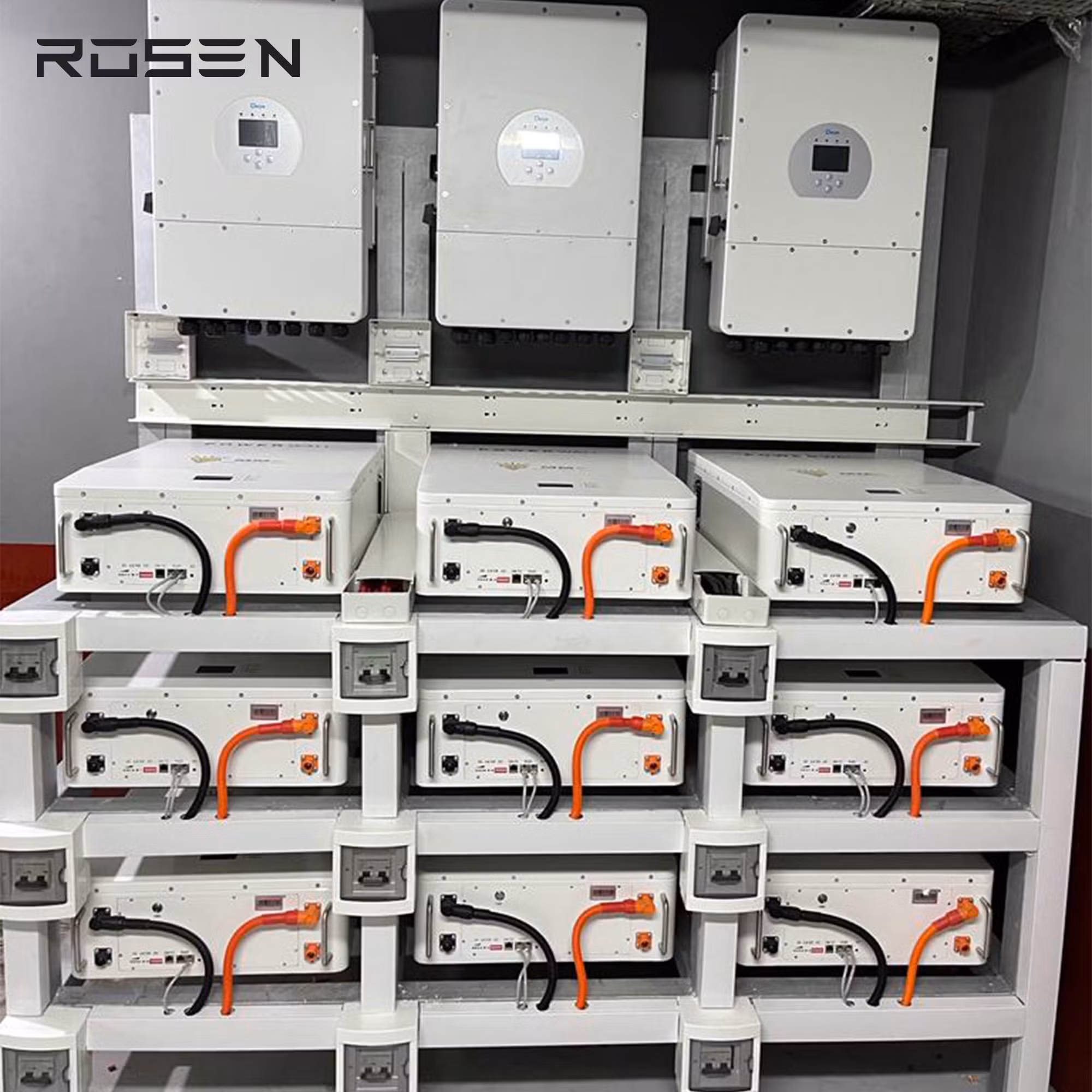

Rosenpv Lithium battery projects are installed for home and commercial solar projects. Home projects are more used with power wall types 48Vdc or51.2Vdc 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah etc whose communication protocols are compatible with hybrid solar storage inverters 3kw, 5kw,
8kw, 10kw, 12kw etc. Commercial projects BESS are more for factories like 100kw, 150kw, 200kw, 250kw, 300kw, 500kw, 1MW, 2MW, 5MW, 10MW etc,
with containerized design and EMS programmable. Rosenpv lithium battery warranty is up to 10years, and MSDS/UN38.3 certificates are listed for safety
installation..
