Basic Info.
Model NO.
lifepo4 battery 100ah-1175ah
Rechargeable
Yes
Size
Medium
Charging(Cc-CV)
2c/4c
Wet Shelf Life
7-10years
Rated Voltage
12V
Charging Type
Constant Current, Then Constant Voltage
Transport Package
by Carton
Specification
9.2 x 133 x 200mm
Trademark
Westart/Solargreen/OEM
Origin
Shenzhen
HS Code
8507600090
Production Capacity
500000PCS Per Month
Product Description

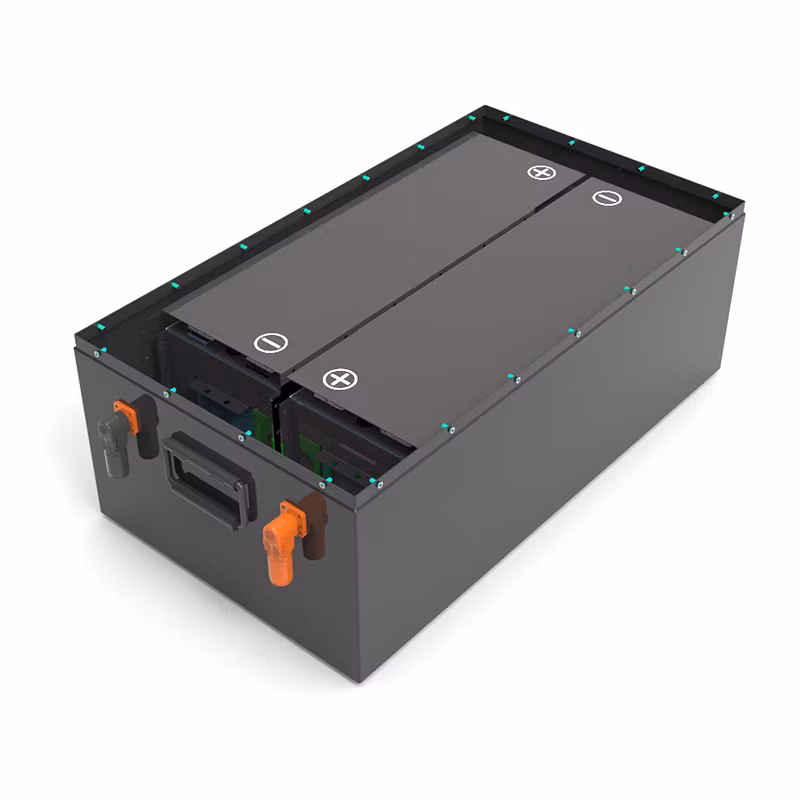

LFP 12V 100Ah 1175Ah LiFePO4 (LFP) Lithium Ion Battery Cell with Super Life Cycle for Energy Storage System, Telecom, Electrical Vehicles, Electrical Boat
•High lifespan: 2500 cycles and more (see chart)
•Deep discharge allowed up to 100 %
•SUS316 stainless steel case for good protection
•Embedded BMS (Battery Management System) : improve lifespan AND secure the battery
•No Lead, no rare earths, no acid, no degassing
•Calendar life > 10 years
•Excellent temperature robustness (-20 °C up to +60 °C)
•Constant power during discharge (very low internal resistance)
•Very low Peukert's losses (energy efficiency >98 %)
•Very low self discharge (<3 % per month)
•No memory effect
•About 50 % lighter and 40% smaller than equivalent Lead-AGM battery with same usable energy
•Certification : CE, RoHS, UN 38.3
Commucation mode:CAN+RS485+Bluetooth
Specifications table: Commucation mode:CAN+RS485+Bluetooth
Technical Dates
| Electrical Characteristics | Nominal Voltage | 48.1V |
| Nominal Capacity | [email protected] | |
| Energy | 5.05kWh | |
| Internal Resistance | ≤20mΩ AC 1KHz measured | |
| Cycle Life (80% DoD) | Cycle life ≥2500@0.2C/0.33C, 5%-950%SOC | |
| Months Self Discharge | ≤2.0% per month at 25ºC | |
| Standard Charge | Charge Voltage | 55.25V or (voltage of any battery reaches 4.25v) |
| Charge Mode (CC/CV) | Constant current, constant voltage | |
| Charge Current | 0.2C/20A | |
| Max. Charge Current | 0.75C/75A | |
| Standard Discharge | Max. Continuous Discharge Current | 1.5C/150A |
| Peak Current | 225A<1S | |
| Discharge Cut-off Voltage | 39.0V or (voltage of any battery reaches 3.0V) | |
| Environmental | Charge Temperature | 0~45ºC |
| Discharge Temperature | -20~60ºC | |
| Storage Temperature | -10~35ºC(Long term best) | |
| Mechanical | Cell / Configuration | 3.7V105Ah / 1P13S |
| Battery Case | SUS316, Black | |
| Dimensions(L*W*H) mm | 428*320*120mm | |
| Weight | About 29.5kg | |
| Terminal | CN-120 (Quick plug connector) | |
| Communication mode | CAN+RS485+Bluetooth |
Application:
Buses
Trucks and delivery vans
Cars
Wheelchairs
Boats
Ground Power Units
Storage
