Basic Info.
Model NO.
LiFePO4 32700 3.2V 6000mAh / 5C
Rechargeable
Chargeable
Size
Small
Discharge Rate
Medium Discharge Rate
Shape
Cylindrical Battery
Electrolyte
Li-ion
Installation
Fixed
Nominal Voltage
3.2V
Transport Package
Standard Packing
Specification
32.3X70.2mm
Trademark
HYGN
Origin
China
HS Code
8506500000
Production Capacity
100000 Piece/Pieces Per Month
Product Description
| Item | Condition/Note | Specification |
| Norminal Capacity | 1C discharge capacity | 6.0Ah |
| AC Impedance | At AC1000Hz | 6.5mΩ |
| Norminal Voltage | | 3.2V |
| Cell SIze | Diameter: 32.2±0.3mm, Max 32.5mm | Height: 70.5±0.3mm, Max.70.8mm |
| Cell Weight | | 140±5g |
| End-of-charge Voltage | CC Mode | 3.65V |
| End-of-discharge Current | CV Mode | 0.3A |
| Charging Method | Standard Charging | 1C at CC/CV 60min |
| Max. Continuous Charging | 6C at CC/CV 10min | |
| End-of-discharge Voltage | CC Mode | 2.0V |
| Max continuouse Discharge Current | | 36A |
| Max Pulse Discharging Current | 3s | 60A |
| Cycle Life | 1C/100% DOD | ≥2500 cycles |
| Operating Temperature Range | Charging Temperature Discharging Temperature Storage Tempearture | 0~60ºC -20~60ºC -20~45ºC |
| Appearance | Without break,scratch,distortion,contamination,leakage and so on | |
Main Application
- EV/PHEV- UPS
- Storage energy
- Starting power supply
Benefits
* Low self-discharge
* Double safety protection
* Sturdy and pressure resistanct steel envelope
* Excellent high and low temperature performance
* With outstanding high level of vibrations and shocks
3.2v LiFePO4 32650 32700 6.0Ah Cylindrical Rehcargeable Lithium-ion Cell
Why buy it?
With 6000mAh high capacity
Over 2500times deep cycle life
Main ApplicationOffered 5-Year Warranty Assurance

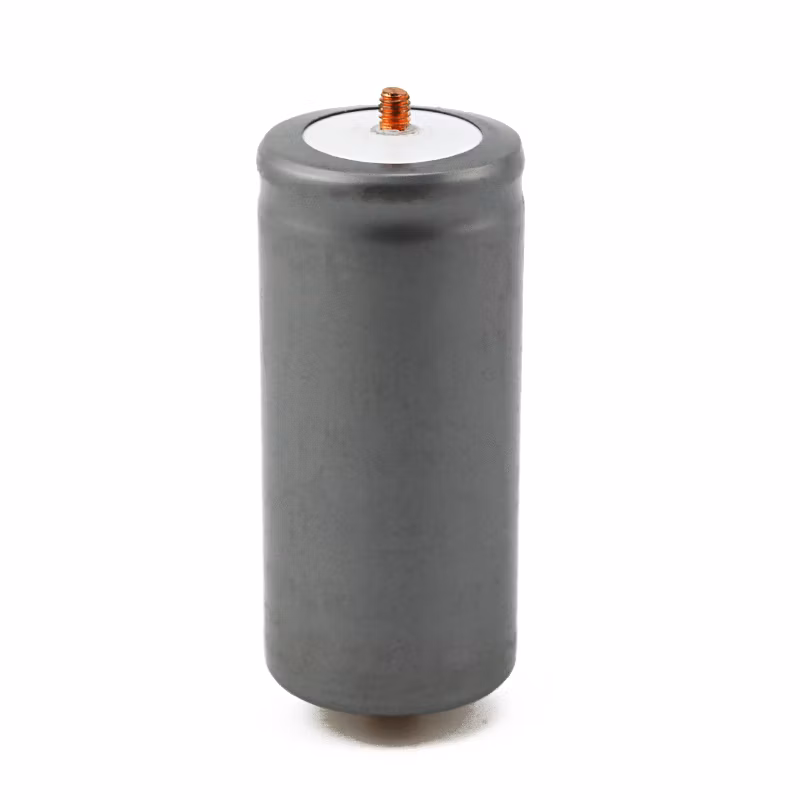

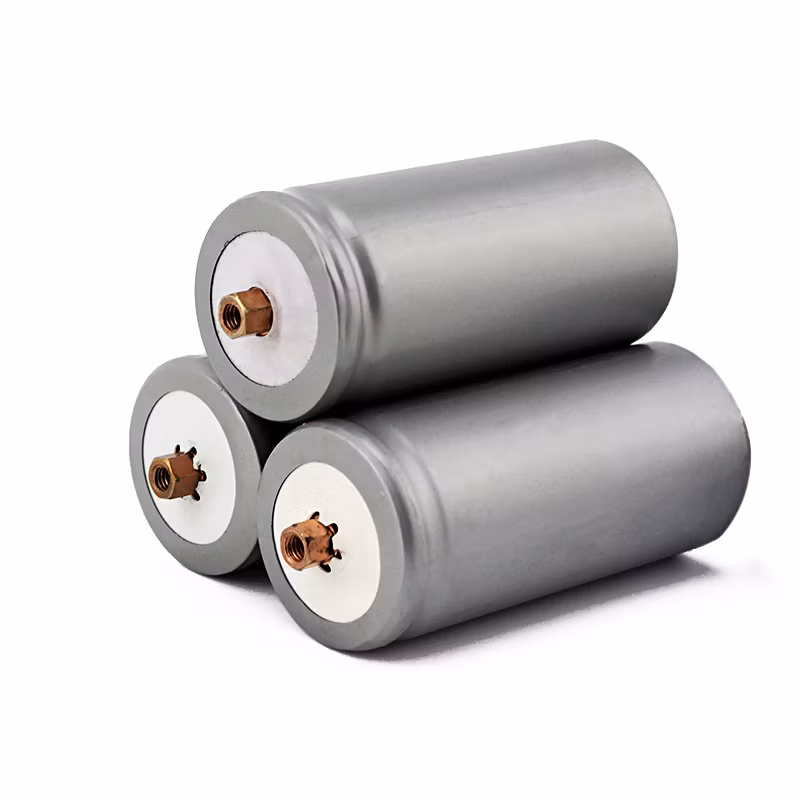

With screw: 32*70mm---32700
Without screw: 32*65mm---32650
With screw: 32*70mm---32700
Without screw: 32*65mm---32650
