Basic Info.
Model NO.
StackArk
Rechargeable
Yes
Size
Medium
Application
Electric Power Systems
Battery Type
LiFePO4/Lithium Battery
Product Name
Home Powerwall Battery
Capacity
100ah 200ah
Voltage
48V/51.2V
Warranty
10 Years
Cycle Life
6000 Cycles
Cell Type
Grade-a Lithium-Ion
Communication
Grade-a Lithium-Ion
OEM/ODM
Customized OEM ODM Battery Powerwall
Transport Package
Wooden Package
Specification
480 x 280 x 210 mm
Trademark
Sunpal
Origin
China
HS Code
8507600090
Production Capacity
1000 Pieces/Day
Product Description
Product Description
Application
Product Images
GroundArk Series
StackArk Series
Specifications
| Model | StackArk-2600 |
| Capacity Energy | 2.8kWh |
| Capacity Ah | 55Ah |
| Suggested SOC | 10-100% |
| Usable Capacity | 2.6kWh |
| Nominal Voltage | 51.2V |
| Operation Voltage | 44.8V - 57.6V |
| Maximum Charging Current | 35A |
| Maximum Discharging Current | 50A |
| BMS | Robust Multi Point Monitoring BMS |
| Scalable | Yes, Maximum 15 Packs In Parallel, 2-8 Packs in Series |
| Life Cycling (0.5C 25ºC) | 6000 Cycles @ 0.5C |
| Warranty | 10 Years |
| Operation Temperature | Chrage : 0 ~ 45ºC, Dischrage : -20 ~ 45ºC |
| Storage Temperature | -20 ~ 45ºC |
| Net Weight | 30kG |
| Dimensions (H x W x D) | 480 x 280 x 210 mm |
| Certifications | MSDS, UN38.3, RoHS, IEC62619,CE |
| IP Grade | IP54 |
| Communication | RS232, RS485, CAN (Compitable with most brand inverters in market) |
Application
Product Images
WallArk Series
Wall Mounted Battery Solution
48V/51.2V 50-200AH
2.56-10.24KWH
2.56-10.24KWH
GroundArk Series
Ground Mounted Battery
SolutionVoltage 51.2V
2.6-10.4KWH
SolutionVoltage 51.2V
2.6-10.4KWH

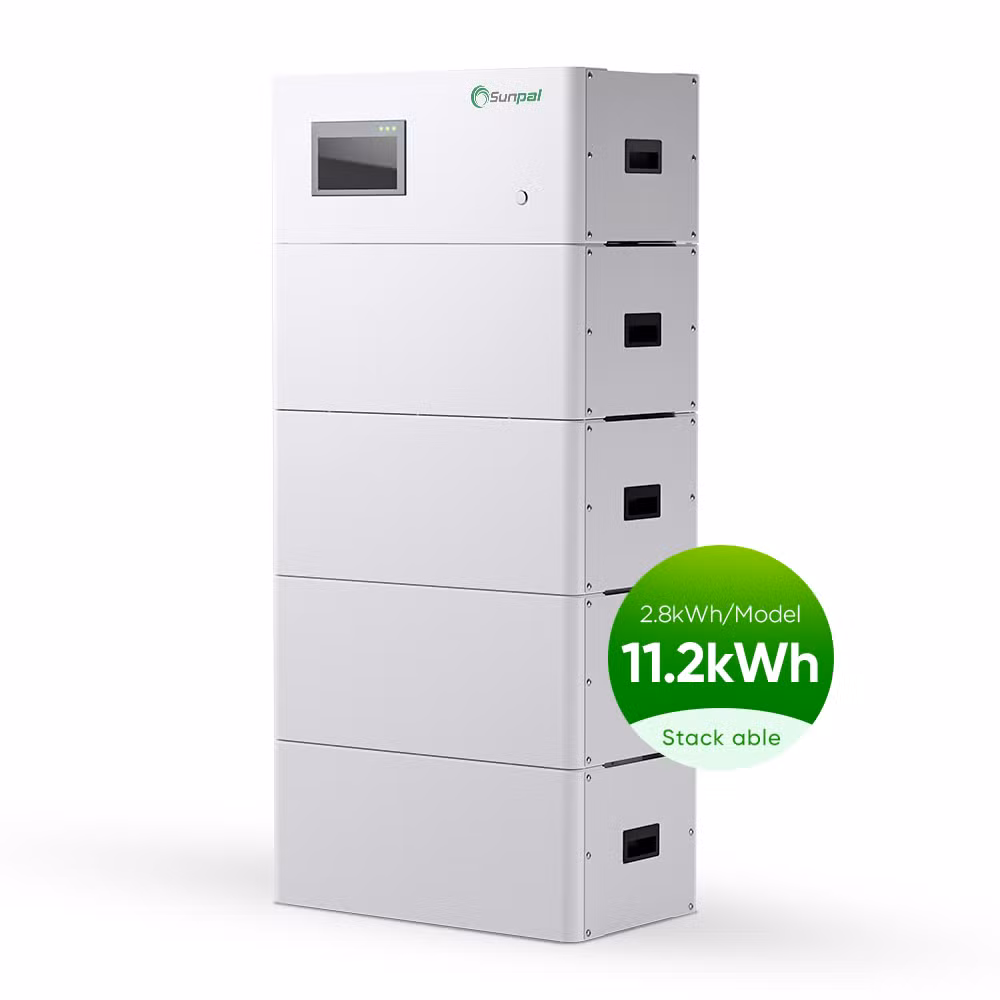

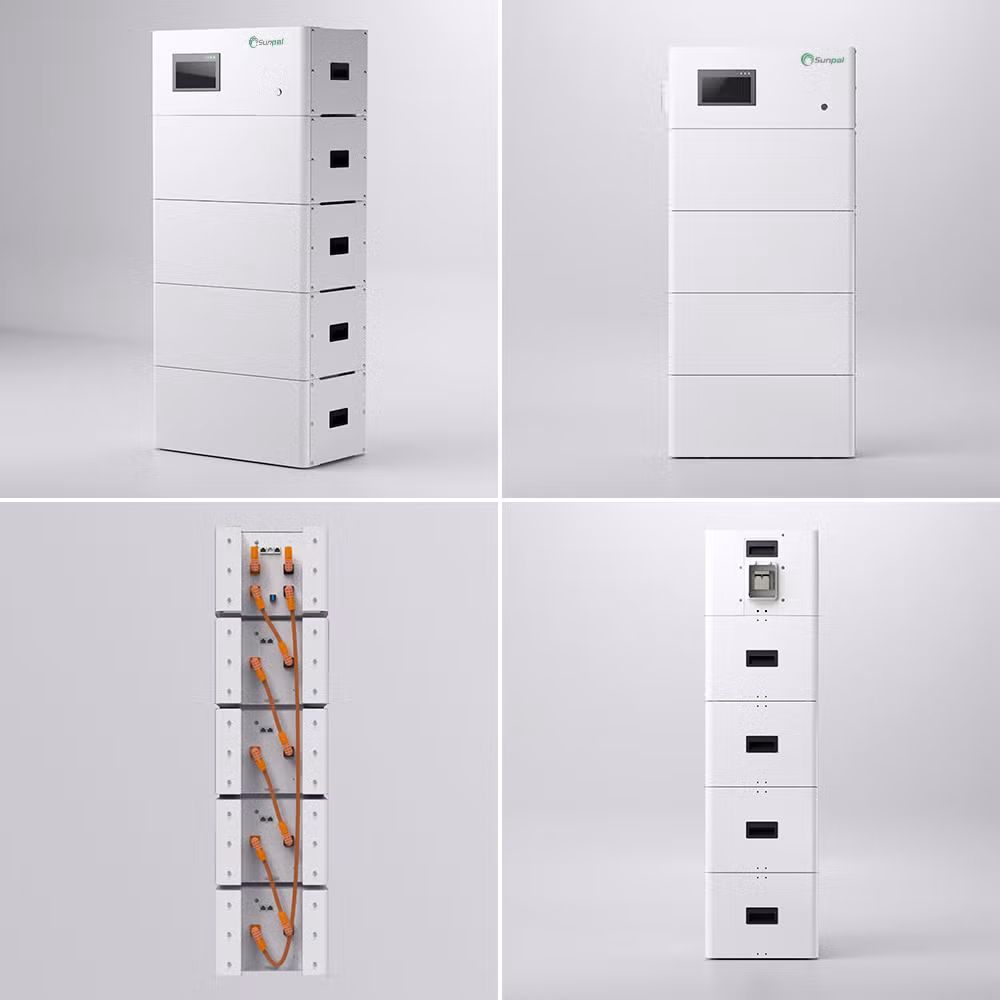

StackArk Series
Stack Mounted High Voltage Battery
SolutionVoltage 260-350V
8KWH-20KWH
SolutionVoltage 260-350V
8KWH-20KWH
Compatible Inverter Brands
